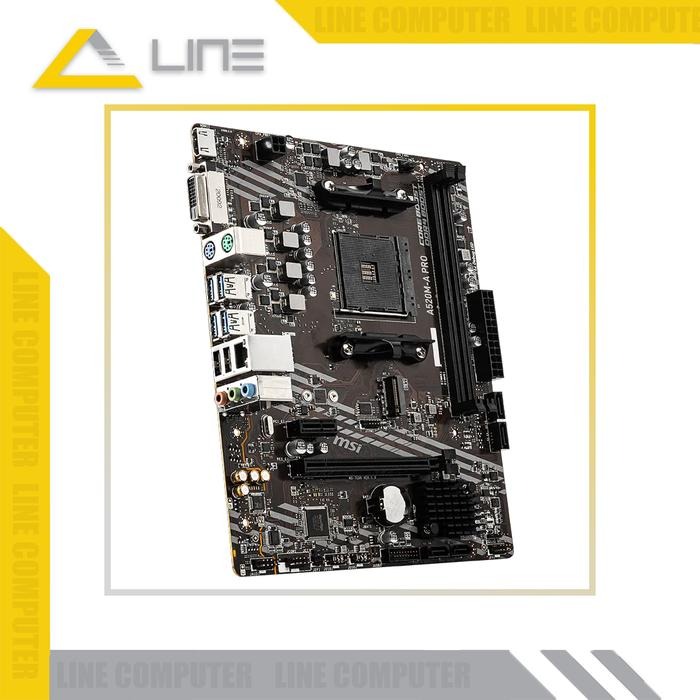

MSI A520M-A Pro

Garansi Resmi 3 Tahun

MEMORY

2x DDR4 memory slots, support up to 64GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

1DPC 1R max speed 4600 MHz

1DPC 2R max speed 3866 MHz

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

EXPANSION SLOT

1x PCIe x16 slot (PCI_E2) 1

2x PCIe 3.0 x1 slots

The supported specification depends on installed processor.

ONBOARD GRAPHICS

1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz2

1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz1 2

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1

Maximum shared memory of 2048 MB

Graphics specifications may vary depending on the CPU installed Available for the processor with integrated graphics.

STORAGE

AMD A520 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)

M2_1 slot (from AMD Processor)

Supports PCIe 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.
